使用 Postman 登录 Github Oauth2


Oauth2

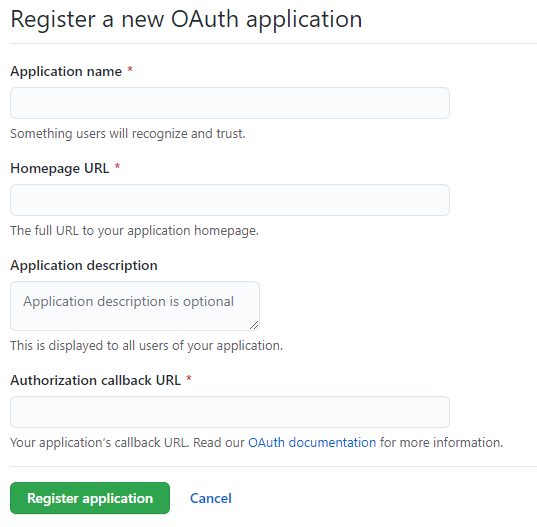

首先登录 github,依次进入 “Setting-> Developer settings -> Oauth Apps-> New OAuth App”,填写完成如下信息后,就完成了注册

1599528870941

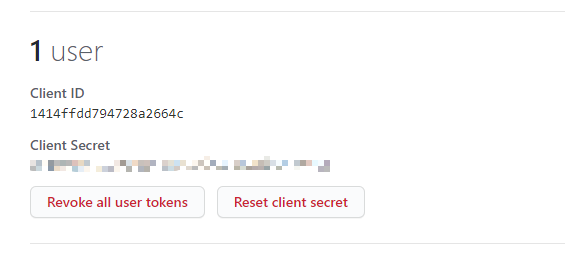

然后,就可以查看到刚刚注册到的 app 的 client idclient secret,这就是我们用以登录 oauth2 的所有信息

1599528948104

接下来使用浏览器访问包含client id 信息的链接,请替换对应的 client_id (这里我们还可以指定 redirect_url,具体信息请参考文末)

https://github.com/login/oauth/authorize?client_id=1414ffdd794728a2664c

如果当前浏览器没有登录 github 帐号,将会重定向到如下的页面,以让用户登录 github:

1599533295808

登录完成后,你将会被重定向到你注册 app 时指定的 callback URL,我所注册的 callback URLhttp://localhost:8080,因此被重定向到:

http://localhost:8080/?code=377f0e139706d5b5a9e4

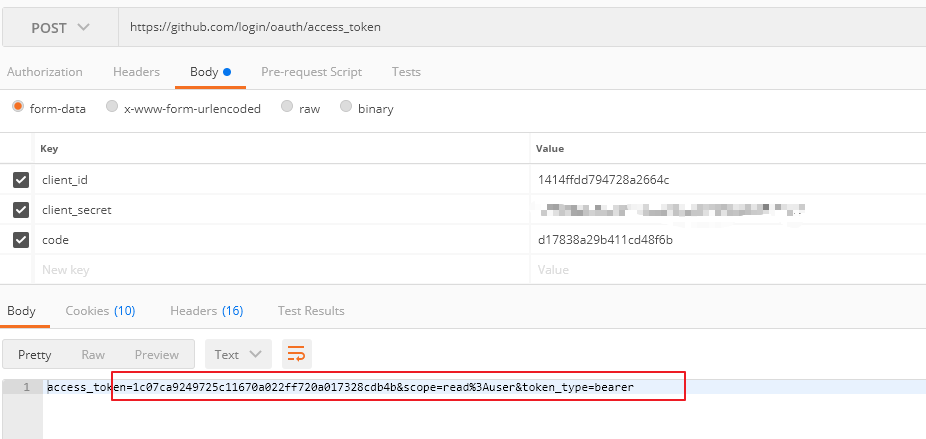

使用重定向 URL 中的 code 我们就可以获取到 access token ,请注意我们使用的是post 方法,使用 form-data post 数据,client_secret 就是上面第二张图中的注册后的信息中可以看到

1599531469901

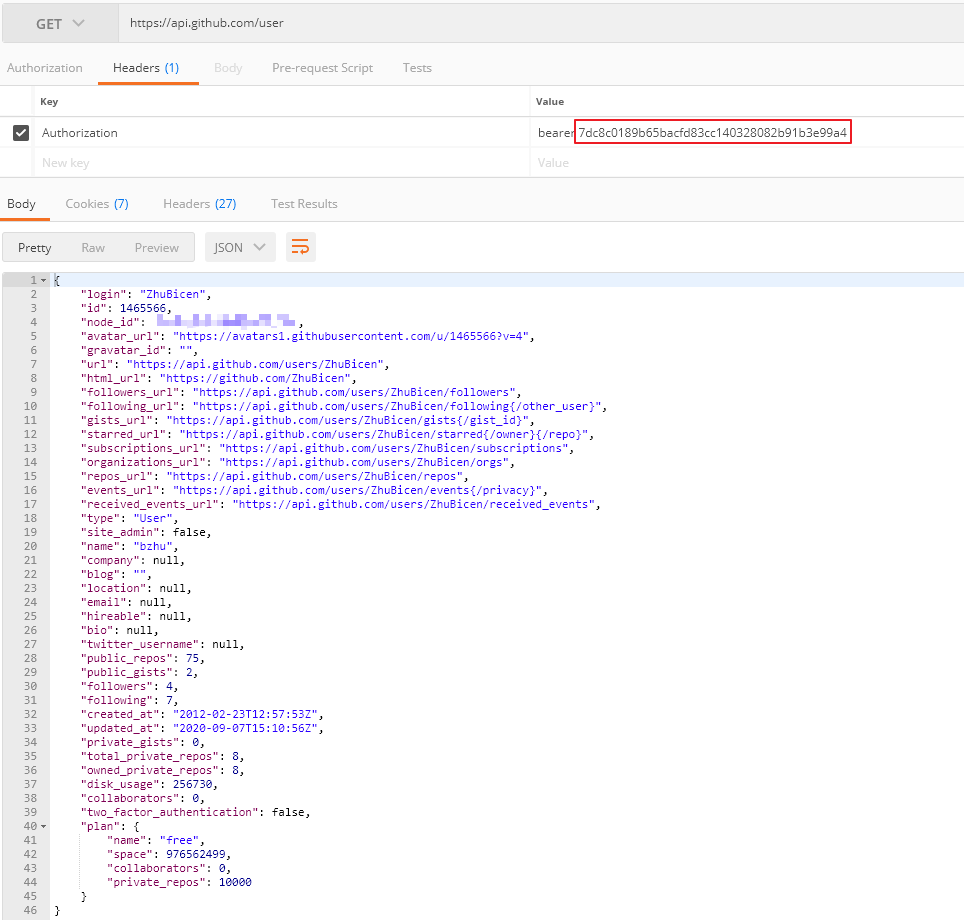

使用刚刚获取的 token 就可以获取的相应用户的信息,请注意 header 中的 Authorization 的值为 bearer + 一个空格 + access_token

1599532149597

另外值得注意的一点是,在第一步获取 code 的时候,还可以指定 redirect_url, 只是这个指定的 redirect_url 需要和注册 app 时指定的 CALLBACK URL 兼容。这里的兼容是指,URL 中的host 和 port要和注册 app 时指定的一致,目录要是注册 app 是指定的目录的子目录

比如在注册 app 是你指定的 callback URL 是: http://example.com/path

GOOD: http://example.com/path
GOOD: http://example.com/path/subdir/other
BAD:  http://example.com/bar
BAD:  http://example.com/
BAD:  http://example.com:8080/path
BAD:  http://oauth.example.com:8080/path
BAD:  http://example.org

更多信息请参考:authorizing-oauth-apps
