使用 Spring 创建 OAuth2 授权服务器


Spring Oauth2

在分布式系统中,授权系统是必不可少的,作为最流行的分布式系统架构 Spring Cloud 提供了对 OAuth2 授权服务器(OAuth2 Provider)的支持。Spring 对与 OAuth2 Provider 的开发支持可以参看 官方文档。但是但是官方对与 OAuth2 Provider 的支持已经过时(Deprecated,但是仍然在发布安全更新),并独立到一个新的项目中:https://github.com/spring-projects-experimental/spring-authorization-server/,但是新的项目还在开发当中,没有正式发布。本文仍然基于老的开发方式进行讲解

Spring Cloud 对与 OAuth2 的支持都集成在 spring.security.oatuh2 包中,使用 Spring 开发 OAuth2 授权服务器,主要需要四个步骤:

1. 使用 @EnableAuthorizationServer 注解

该注解会启用 /oauth/authorization/oauth/token 端点,用于获取授权码和 Token

@RestController
@EnableAuthorizationServer
@SpringBootApplication
public class OauthServerApplication {
    public static void main(String[] args) {
       	SpringApplication.run(OauthServerApplication.class, args);
    }
}

2. 注册 Client 信息

通过继承AuthorizationServerConfigurerAdapter 注册 Client 信息,要注册的信息包括:Client ID,Client Secret,授权模式,重定向 URL 以及权限范围。

其中 client ID 和 Client Secret 用与 Client Authentication

@Configuration
public class Oauth2Config extends AuthorizationServerConfigurerAdapter {
    //...
    @Override
    public void configure(ClientDetailsServiceConfigurer clients) throws Exception 	   {
        clients.inMemory()
                .withClient("eagleeye")
                .secret("{noop}thisissecret")
                .authorizedGrantTypes("authorization_code")
                .redirectUris("http://localhost:9090/callback")
                .scopes("webclient", "mobileclient");
    }
    //...
}

3. 配置 Resource Owner 的信息

在配置了 Client 的信息后,需配置Resource Owner 的相关信息,也就是在 授权服务器需要输入的用户名和密码信息

    @Override
    protected void configure(AuthenticationManagerBuilder auth) throws Exception {
        auth.inMemoryAuthentication()
            .withUser("user").password("{noop}password").roles("USER")
            .and()
            .withUser("admin").password("{noop}password").roles("USER", "ADMIN");
    }

4. 提供 Rest 接口返回用户信息

在 Client 获取到 Token 之后,就可以使用该 Token 访问 /oauth/token 端点,获取真正的用户信息:

	@RequestMapping(value = {"/user"}, produces="application/json")
	public Map<String, Object> user(OAuth2Authentication user) {
		Map<String, Object> userInfo = new HashMap<>();
		userInfo.put(
				"user",
				user.getUserAuthentication().getPrincipal());
		userInfo.put(
				"authorities",
				AuthorityUtils.authorityListToSet(user.getUserAuthentication().getAuthorities()));
		return userInfo;
	}

完整的项目代码放在了 GitHub上,下面来测试授权服务器:

测试 OAuth2 授权服务器

使用 Post Man 测试,创建一个 Request,在 Authorization 字段中选择 OAuth 2.0

image-20201024223552641

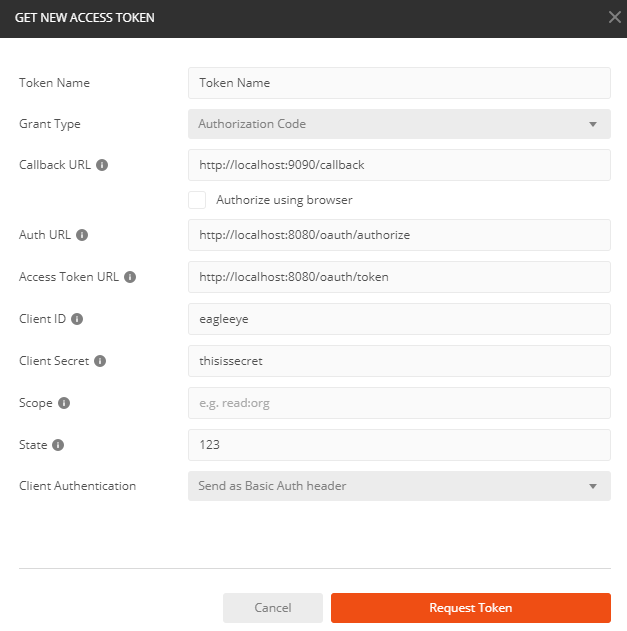

然后点击 get access token ,填入 OAuth2 相关的信息:

image-20201024224954660

点击 Request Token, 会跳出 Resource Owner 的授权信息:

image-20201024224519454

输入用户名: “user”,用户名:“password”,点击 “Sign in”

就可以获取到 Access Token:

image-20201024231829082

获取到 Access Token 后,就可以通过 Rest 接口获取用户的信息。点击 Use Token 按钮,请求 /user 就可以获取用户信息:

image-20201024231905085

另外附上 OAuth2 服务器相关的资源:

  1. 一个 OAuth2 授权服务器的例子:说明文档,代码在 github
  2. 这篇文章讲述 OAuth2 的概念
  3. Spring Boot 提供的 OAuth2 起步教程
  4. OAuth2 授权码模式实现
  5. 稍微有点老的文章
  6. Spring Security 和 Gateway
  7. 有详细操作步骤的一个例子
